Single-cylinder big boardmake-up machine

Semi-automatic molding machine series

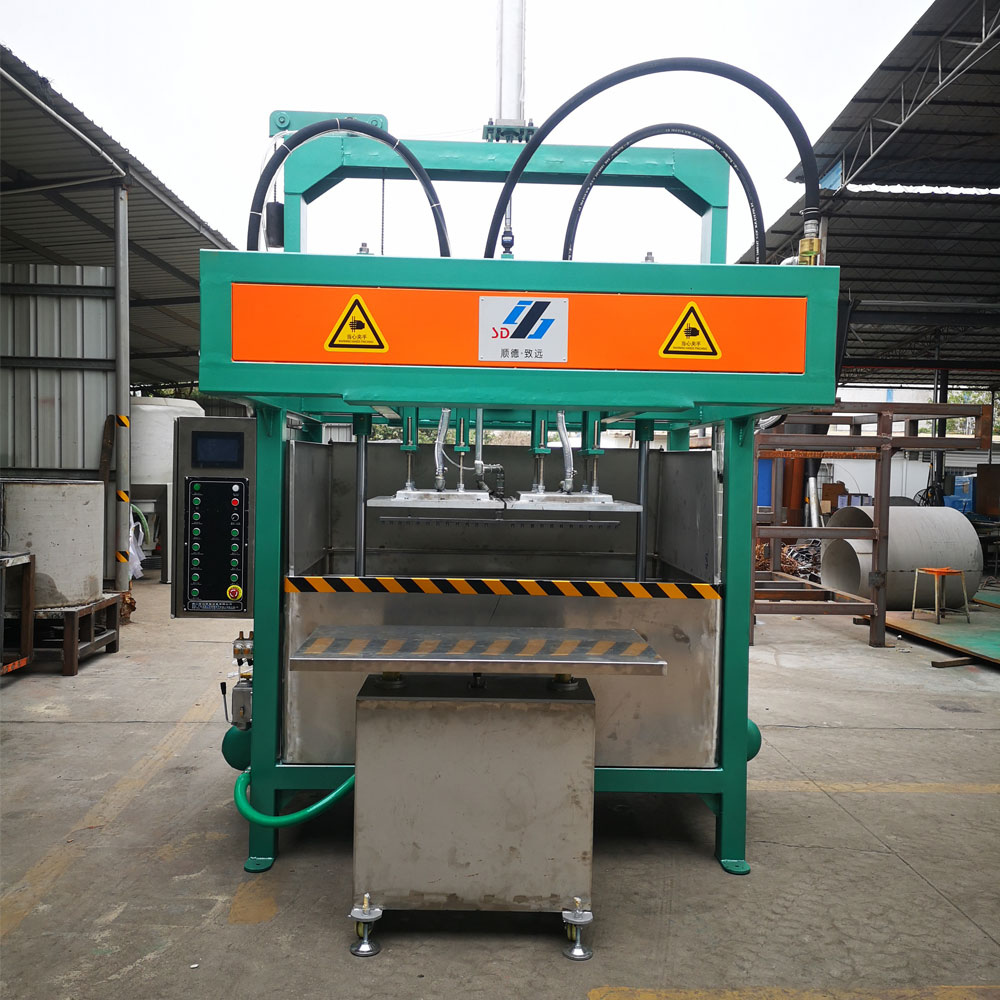

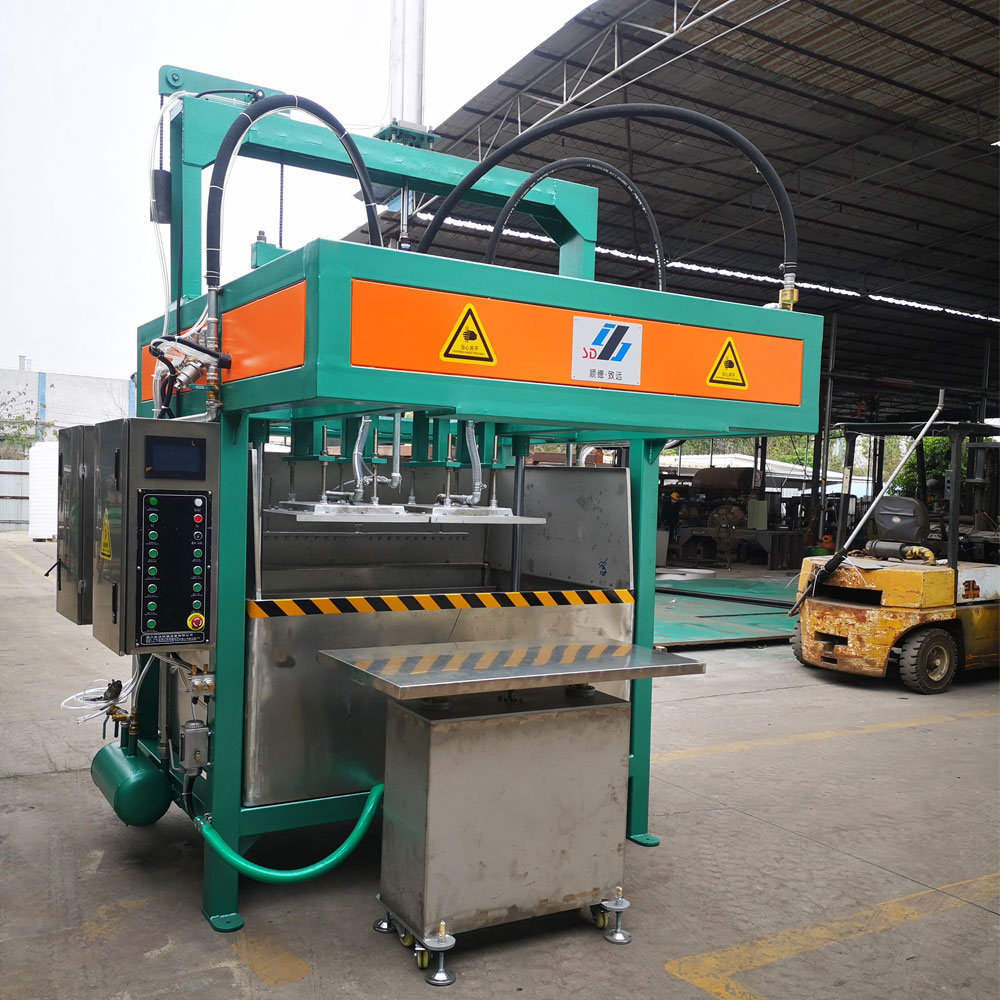

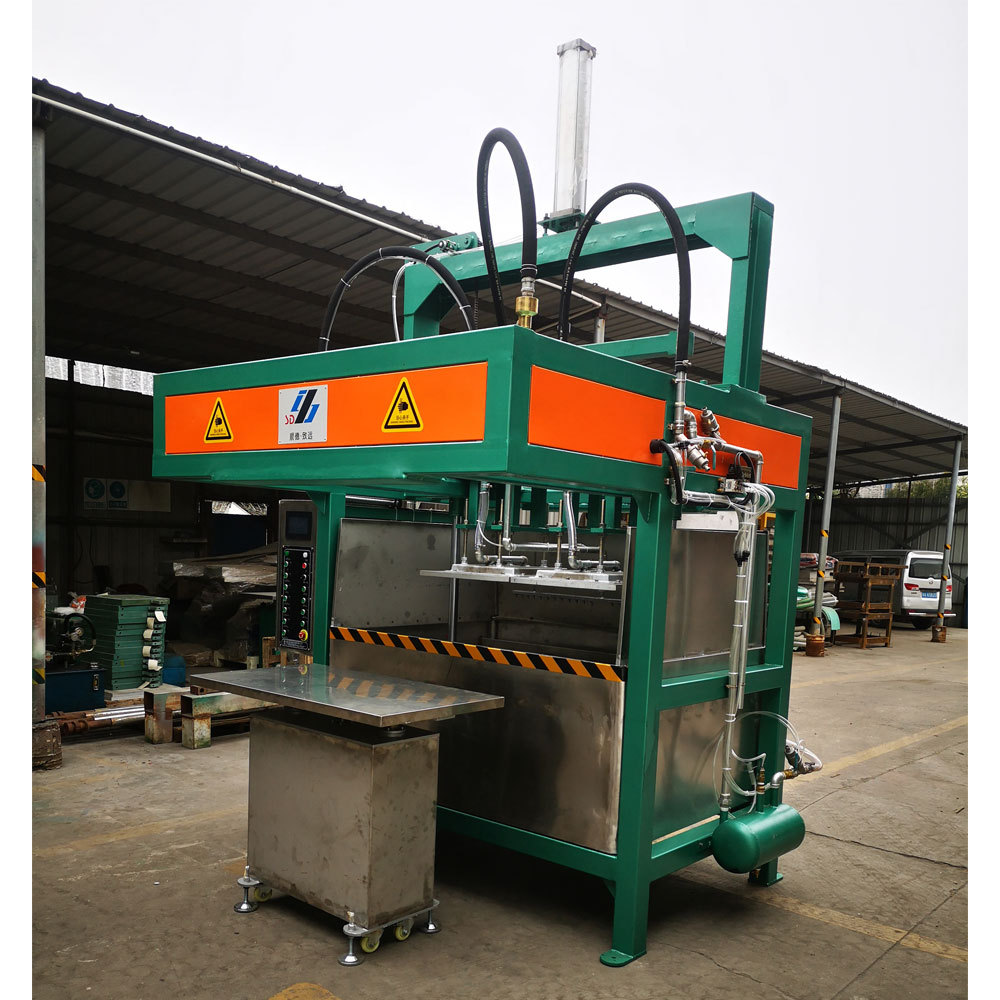

Single-cylinder big boardmake-up machine

成型机上模传动方式∶丝杆+伺服电机传动+导轨，将产品传动送出到烘干线或接产品平台上，降低工人劳动强度。

Drive mode: screw + servo motor drive + guide rail, the product drive is sent to the dryingline or connected to the product platform, reduce the laborintensity of workers.

优点:结构简单，操作方便，价格便宜，配置灵活。

Merits: simple structure, easy operating, low price,and flexible configuration.

PLC控制，触摸屏操作，伺服电机、丝杆、导轨、滑块定位更加精准，安全，稳定，易用。有往复式、翻转式﹔单缸、双缸等机型可供客户选择。

Thete are reciprocating, turnover,single and double cylinders forming machines for client's choice.

规格型号 Model	模板尺寸 Mould plate size	真空度Mpa Vacuum degree Mpa	压缩空气压力 Mpa Compressed air pressure Mpa	成型循环（S） Molding cycle(S)
ZY-CX-B	1100*600mm	-0.05-0.07	0.5-0.7	3-60
	1200*800mm	-0.05-0.07	0.5-0.7	3-60
	1300*800mm	-0.05-0.07	0.5-0.7	3-60
	1600*1400mm	-0.05-0.07	0.5-0.7	3-60
其他特殊规格可按客户要求定制。 Other speical specifications can customized According to client's requirement.
